NZX 1500

NZ QUATTRO

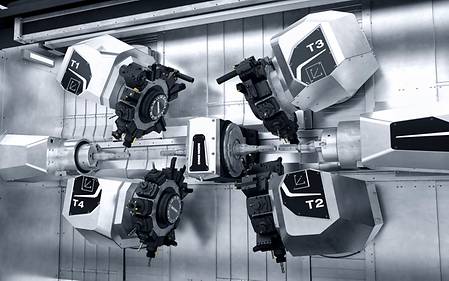

Four turrets with four 80 mm Y-axes and up to four B-axes.

Max. workpiece length
1,290 mm
Max. bar capacity diameter
72 mm
Max. X-Axis
210 mm
Max. Y-Axis
80 mm
Max. Z-Axis
1,290 mm
Control & software alternatives
Fanuc
Highlights

Turning Performance

  • turnMASTER main and counter spindle with up to 7,000 rpm (5,000 rpm as standard) and 174 Nm (100 % DC)
  • 8 mm cutting radial depth at all 4 turret positions in CK 45 (65 mm cutting diameter // 270 m/min cutting speed // 750 cm3/min metal removal rate)
  • 36 month warranty with unlimited spindle hours

Milling Performance

  • 12,000 rpm built-in motor turret with up to 24 Nm / 16 kW
  • 12 stations for VDI 30 and BMT 40 or 16 stations for VDI 25 and BMT 45

B-axis

  • At all 4 positions possible
  • -10°– +100° swivel range
  • Standard tools instead of special angle tools & 5-axis simultaneous operation possible

TWIN spindle (TS)

  • Two independent work areas for 6-sided complete machining
  • Turning function with up to 4,000 rpm and 60 Nm (100 % DC)
  • SWISSTYPE function with up to 5,000 rpm rotating guide bush
  • Steady rest function
  • Ideal on long bed but possible also on short bed version
Application Examples
Automation

Standard automation and customised solutions in the VERTICO design

Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:

Control & Software
Service & Training
Downloads & Technical Data
Technology segment
Horizontal Production Turning
Work Area
Max. X-Axis
210 mm
Max. Y-Axis
80 mm
Max. Z-Axis
1,290 mm
Workpiece
Max. workpiece length
1,290 mm
Max. bar capacity diameter
72 mm
Control
Fanuc
Basic functions
Counter spindle
Y-Axis
Production Type
Single parts
Small series (< 50)
Medium series (50 - 1000)
Large Series (1000 - 100.000)
Mass production (> 100.000)
Automation
Bar Feeder
Gantry loader
Robot
Pick-Up
Materials
Plastic / CFK
Aluminum
Steel / Cast
Titanium / Inconel
