NLX 2500
Ultimate Performance for Parts Machining
Max. workpiece diameter
460 mm
Max. workpiece length
1,255 mm
Max. bar capacity diameter
90 mm
Max. X-axis stroke
260 mm
Max. Y-axis stroke
100 mm
Max. Z-axis stroke
1,345 mm
Control & software alternatives
MAPPS Mitsubishi
Highlights

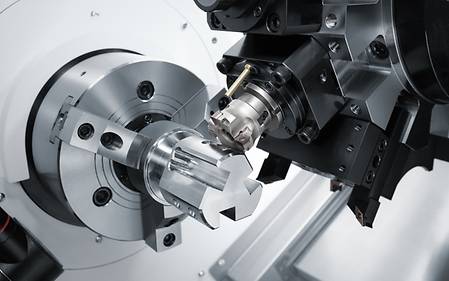

Milling
- Turret equipped with BMT (Built-in Motor Turret)
- High-speed rotary tool spindle: 10,000 min-1
High precision
- Thoroughly controlled thermal displacement
- High-precision, quick-change turret (Option)
High rigidity
- Slideways are used for X / Y / Z axes
Power-saving
- Energy-saving setting and visualization of energy-saving effects
Application Examples
Automation
Standard automation and customised solutions in the VERTICO design
Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:
NLX 2500 + GX 10 T
GX / GX T
GX 3 / 5 / 7 / 15 // GX 5 / 10 T - Modular gantry loader system for one or more machines
- Highly productive and flexible workpiece handling for one machine or linking several machines
- GX 10 T: Handling of workpieces up to ø 200 x 150 mm and and weighing up to 10 kg
- Combinable with various kinds of automatic peripheral equipment (washing, measuring, marking, etc.) and grippers of flexible design available
- Easy programming and setup due to integration into the machine control
- Load status monitoring available via DMG MORI Messenger
Highlights
NLX 2500 | 700 with GX 10 T
Highlights GX 3 / GX 5 / GX 7 / GX 15 / GX 5 T / GX 10 T / GX 15 T
- Handling of workpieces up to ø 200 mm, a length of 150 mm and a weight up to 10 kg
- Compact, space saving with built-in loader
- Combinable with various kinds of automatic peripheral equipment (washing, measuring, marking etc.) and grippers available by flexible design
- Easy programming and setup due to integration into the machine control
- Loader status monitoring available via DMG MORI Messenger
- Easily expandable for two or more machines
- Optional up to 100 kg handling weight available
Robo2Go Turning
Flexible workpiece handling for small to medium batch sizes
- One app for uniform control of all Robo2Go variants, setting up a new workpiece < 5 minutes
- Robo2Go Turning, robot payload 12, 25 or 35 kg
- Rapid changeover from chuck to shaft parts
- Robo2Go Vision, robot payload 35 kg
- Robust 3D camera recognition, ideal for multi-job function
Highlights
One app for uniform control of all Robo2Go variants.
- Integrated in the machine control operation via CELOS APP: No need to change your NC programs!
- Intuitive usability thanks to dialog-guided software
- Creation of the process through predefined program modules via drag & drop: No robot programming knowledge necessary
- Setting up a new workpiece < 5 minutes
Robo2Go Turning
- Rapid changeover from chuck to shaft part storage
- Handling of shafts ø 20 – 170 mm and chuck parts ø 20 – 175 mm
- Three versions for all requirements: Robot payload 12 / 25 / 35 kg
- Stacking magazine
Robo2Go Drawer Storage
The storage expantion for your Robo2Go Turning
- 300 % higher capacity compared to standard
- Main time-parallel setup of the workpiece storage
- Multijob per drawer and within a drawer possible in the standard system
- Job management of all jobs via the Robo2Go Jobs app
Robo2Go Vision
- Robust 3D camera recognition, ideal for multijob function
- Infeed and outfeed of raw and finished parts by pallet
- Cylindrical chuck parts of ø 25 – 175 mm
Details
Robo2Go Turning – Load capacity 12, 25 and 35 kg
Standard automation but flexible to suit your workpieces
Robo2Go Max
Flexible workpiece handling up to 115 kg
- One app for uniform control of all Robo2Go variants, setting up a new workpiece < 5 minutes
- Strongest version for 210 kg payload and 115 kg workpiece weight
- Handling of workpieces ø 40 to ø 400 mm as standard
- Fast supply and removal of raw material and finished parts using pallets or workpiece trolleys
- Free access to control and tool magazine
Highlights
One app for uniform control of all Robo2Go variants.
- Integrated in the machine control operation via CELOS APP: No need to change your NC programs!
- Intuitive usability thanks to dialog-guided software
- Creation of the process through predefined program modules via drag & drop: No robot programming knowledge necessary
- Setting up a new workpiece < 5 minutes
- Strongest version for 210 kg payload and 115 kg workpiece weight
- Handling of workpieces ø 40 to ø 400 mm as standard
- Fast infeed and outfeed of part-machined and finished parts by means of pallet or workpiece trolley
Details
Strongest version for 210 kg payload
Free accessibility to the machine and the automation
MATRIS Light
Highly flexible and collaborative automation for workpieces up to 5 kg
- Freely movable workpiece handling, incl. robot and storage area on a trolley
- Workpieces up to 5 kg, or 2 × 2 kg with double gripper
- No infrastructure changes
- No safety fence necessary
- 600 × 900 mm footprint
- Collaborative robots, setup time <5 minutes
- Direct teaching without robot knowledge
- Easy connection via Ethernet
- Expansion (option)
- Storage for up to 108 workpieces (2-position storage for max. 36 workpieces as standard)
- Blow-off device
- Measuring system and quality check
MATRIS
Flexible modular robot system for ≥ 1 machine
- Modular concept with standardized peripheral devices, e. g. washing, measuring or marking
- 80 % shorter setup time due to modular and standardized peripherals and robot programs
- Flexible adaptation to system changes including after installation
- Simple and easy operation via the MATRIS control system without programming
Highlights
Highlights - Workpiece Handling
- Handling of workpieces up to ø 200 × 200 mm, 1 × 20 kg or 2 × 10 kg
- Stacking magazine:
- 14, 20 and 26 pallets: ø 150 × 120 mm, max. 35 kg per pallet
- 10 and 20 pallets: ø 200 × 200 mm, max. 75 kg per pallet
- Loading of oversized tooling in case of vertical machining center
- Available for 13 series, e. g. NLX, NTX, NHX, DMU, NMV, eVo, etc.
Highlights - Pallet Handling
- Ideal for the flexible production of 50 to 200 workpieces / day
- Space-saving pallet handling for up to 40 pallets
- 400 × 400 mm pallet size
- 150 kg transfer weight (workpiece and pallet)
- Integration of secondary processes such as deburring or marking possible
- Available for the CMX 50 U, CMX 70 U, DMU 50, DMU 65 monoBLOCK, CMX 600 V, CMX 800 V, CMX 1100 V
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Load capacity up to 2000 kg
- Compact and manoeuvrable
- Integration into existing processes
AMR 2000 chips
- Autonomous transport of chip trolleys
- Automatic pick-up order from the DMGMORI master computer
- Integration into existing material processes
- Extension of machine tool autonomy over the night or weekend
- Fleet ready
AMR 2000 tool handling
- Tool identification in the standard
- Quick installation of the automation system
- Reliable technology with proven components
- Integration into existing production possible
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs
WH-AMR
Workpiece automation with maximum flexibility thanks to flexible layout design
- Modular concept with flexible layout design
- Driverless transport systems without guide rails or tracks
- Collaborative: human and machine in one system
- Vision sensor enables robot arm positioning accuracy better than ± 1 mm
- Workpieces up to ø 150 × 120 mm and 10 kg
- Compact design (700 × 1,035 mm)
- Laser sensor
- Excellent operational performance and stability, including on an uneven floor
Control & Software
Chip Breaking
- Oscillating movement of the feed axis results in air cutting, which leads to effective chip size reduction
- For external longitudinal turning of internal and external diameters, facing, drilling and grooving*
- Integrated safety function checks plausibility of parameter entries
* For inclined surfaces, a step pattern results because the feed can only be oscillated in one axis at a time.
Highlights
Customer benefits
Before the actual machining, the machining status can be checked by using a graphic
- The chip length can be practically determined by the cycle and is independent of the material
- No more process interruptions, as chip balls are avoided
- Easy setting on the HMI with high operating safety
Left: The oscillation can be set with the simplest parameter inputs / Right: Simply activate it by ON / OFF in the HMI
Polygon turning
- Machining also on machines without Y-axis
- Highly productive without milling the individual surfaces
- Dialog-guided programming thanks to the technology cycle
Highlights
Customer Benefits
Different regular polygon shapes integrated
- Productivity especially for small components
- Chamfering possible in the same process
- Simple and fast programming minimizes errors
Outer diameter parameter setting
Polygon- / Oval-Turning
- Easy handling of non-circular parts
- Intuitive user interface for polygons / oval turning
Highlights
Customer Benefits
- Making the required geometries with possibilities of simple fine-tuning
- Possiblity of fine tuning of the geometric parameters (long / short Semi-axis and bearing angle)
- Machining can be combined with main spindle or counter spindle
Left : Pre-position and support position in X and Z-axis can be directly entered over the surface. / Right : Monitoring of the support position via a defined Position window.
Excentric turning and milling
- Superposition of the turning movement by additional X- and Y-traverses
- Applicable for turning and milling
Highlights
Customer Benefits
- Eccentric geometries easy to manufacture
- Exact axis coupling and synchronization in the background
Left : Enter the parameters for the position of the external workpiece area. / Right : Graphical representation of the position within the workpiece.
Multi Threading 2.0
- NEW: On-Point Threading - Position oriented thread production
- Free definition of contours, pitches and gears possible
- Creation of large transmission threads, which can not be manufactured by simple thread chasing
Highlights
Customer Benefits
- Trapezoidal, buttress and knuckle thread easily programmable at the machine
- Screw conveyor with any profile geometry
- Ball screw nut with cross holes simple to realize
Left : Input of the parameter for thread length, position pf the thread and the distance of the retract movement. / Right : Parameters for thread shaping, e.g. profie height, pitch diameter, etc.
Multi threading 2.0 Pro
Highlights
- Producing profiles with undercut due to the profile splitting option.
- Applying standard tools and tool holder for left and right sided machining of the flanks
- Surface quality of Ra 0,3 an CrNi-Alloys possible
Control of program status
- In combination with the Gildemeister structure programming, A safe and fast reboot of the machining program after an interruption
- Easy program operation especially with multiple spindles or tool magazine
- Displays the process status of the workpiece
Highlights
Customer Benefits
- Display of the detailed status on the controller
- Enter remarks automatically by the GILDEMEISTER structure programming.
- Safe re-entry into the program by the press of a button instead of searching for a specific block.
GILDEMEISTER Structural Program
- Structured approach with more than 20 standard programs and more than 200 processing variants incl. automation (bar processing, robot / portal loading, ...)
- Display of the program status with additional markers (EPS) for the sub-programs.
Left : HMI with markers status. / Right : Clear program structure.
gearSKIVING 2.0
- Straight and helical external or internal spur gears and splines
- Arrow teeth with tooth offset Turn-mill machines
- Ball-shaped toothing by mathematical transformation of the 6th virtual axis
Highlights
Customer Benefits
- Internal toothing without angular head possible
- Short processing times, 10 x faster than shaping
- Synchronization and tool path controlled by the Cycle
Left : Inside gear profile machining. / Right : Outside gear profile machining.
gearHOBBING
- Programming of the gearing parameters via dialog input
- For spur gear, helical gear and worm gear
- Gear cutters and disk cutters can be used
- Maximized tool life by shifting of the cutter
- Achievable quality ≤ DIN 7
Highlights
Customer benefits
- Gear profile modifications easy to handle
- Use of regrinded tools
- Error prevention by monitoring (e. g. wrong axis cross angle, or wrong turning speed, or turning direction)
Left : Dialogue-supported input of all necesary gearing data. / Right : Input of the gearing paramters by single tooth or single groove milling.
Alternating speed
- Easy to operate through three parameters and without additional sensors
- Avoiding vibrations by means adaptation of the speed
- Application for the main spindle and counter spindle, or for milling machines with FD tables with Direct Drive
Highlights
Customer Benefits
Input of parameters for speed set-point, differential speed and revolution frequency
- No manual intervention by the operator
- Identical repeatability for all components
- Increased process safety for special applications by avoiding vibrations. example, When using long thin drills or for milling parts with critical clamping
Multitool
- Efficient use of multi-tip turning tools with more than one cutting edge on turn & mill
- Several "sister tools" on one main tool holder
Highlights
Customer Benefits
- Reduction of tool change times
- Saves tool magazine space
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
Retraction Cycle
- By pushing the associated key the X- axis and the Y-axis travel to the positive end-positions for external machining
- Ideally suited to prepare the work space for set-up and alternatively also as an emergency rescue function.
Highlights
Customer Benefits
Functionality - Selection of the cycle by pressing the associated key on the operating panel
- Easy operation when setting up multi - channel machinery
- Possibilty of a fast response during external machining as a rescue function
Efficient Production Package
- Solutions for a safe process and for the efficient use of important machining steps
- Applications: cone cleaning, tool data monitoring, safe withdrawal movement, tapping, deep hole drilling, external thread and spigot milling, internal thread and circular milling, reverse countersink cycle
- 12 stored machining strategies for stock removal, deep hole drilling, Pocket milling machines*
Highlights
Customer Benefits
- Runtime optimization according to individual application
- Safe retraction after program break
- Tool data monitoring
Left : Input mask for universal cycle pocket milling. / Right : Input mask for tapping cycle
Service & Training
Downloads & Technical Data
Work Area
Max. X-axis stroke
260 mm
Max. Y-axis stroke
100 mm
Max. Z-axis stroke (Type 500)
500 mm
Max. Z-axis stroke (Type 700)
795 mm
Max. Z-axis stroke (Type 1250)
1,345 mm
Workpiece
Max. workpiece diameter
460 mm
Max. workpiece length (Type 500)
450 mm
Max. workpiece length (Type 700)
705 mm
Max. workpiece length (Type 1250)
1,255 mm
Max. bar capacity diameter
90 mm
